Are you tired of watching your energy bills climb every month? If your water heater is aging or you’re simply ready to upgrade to a more efficient system, a hybrid water heater might be the perfect solution. Often called “heat pump water heaters,” these units are changing the game for homeowners who want to save money without sacrificing comfort.
At Any Hour Electric, Plumbing, Heating & Air, we believe in empowering our customers with the knowledge they need to make the best decisions for their homes. While the technology is advanced, understanding the installation process doesn’t have to be complicated.
What Is a Hybrid Water Heater and How Does It Work?
Before we dive into the installation, it’s helpful to understand what makes these units “hybrid.” A standard electric water heater uses resistance coils to generate heat, similar to a toaster. It’s effective but consumes a lot of electricity.
A hybrid water heater combines two technologies:
- Heat Pump: This is the primary efficiency driver. It uses a compressor and refrigerant to pull heat from the surrounding air and transfer it into the water tank. It works like your refrigerator, but in reverse.
- Electric Elements: These are backup resistance coils that kick in only when demand is extremely high or the ambient air is too cold.
By prioritizing the heat pump, these units can be up to three times more efficient than a standard electric model.
Why Should You Consider Switching to Hybrid?
- Massive Energy Savings: Because they move heat rather than creating it, hybrid units can save the average household hundreds of dollars per year on electricity.
- Dehumidification: As the heat pump pulls moisture from the air to heat the water, it naturally dehumidifies the space. This is a fantastic bonus if your water heater is located in a damp basement.
- Cooling Effect: The exhaust air from the unit is cool. In a hot garage during the summer, this can actually make the space more comfortable.
- Rebates and Credits: Many local utility companies and federal tax credits (like the Inflation Reduction Act) offer substantial financial incentives for installing high-efficiency heat pump water heaters.
What Are the Installation Requirements?
Installing a hybrid water heater is more complex than swapping out a standard tank. Because it interacts with the air in your home, it has specific requirements that must be met to function correctly.
1. Air Space and Location
This is the most critical factor. The heat pump needs “fuel” in the form of warm air.
- Volume: Most manufacturers require a room with at least 700 cubic feet of air space (roughly the size of a 10 x 10 room).
- Airflow: If the unit is in a small closet, you will need to install louvered doors or ductwork to ensure it can breathe. Without enough air, the unit will suffocate, efficiency will drop, and it will revert to expensive electric-only mode.
- Temperature: These units work best in locations that stay between 40°F and 90°F. Garages and basements are often ideal locations.
2. Condensate Management
Unlike a standard electric tank, a hybrid water heater produces water (condensate) as it operates.
- Drainage: You must have a way to get rid of this water. This usually means running a PVC drain line to a floor drain, a utility sink, or outside.
- Condensate Pump: If gravity drainage isn’t an option (for example, if the unit is in a basement without a floor drain), you’ll need to install a small condensate pump to push the water up and out.
3. Electrical Connection
Most hybrid units require a 240-volt connection, similar to a standard electric water heater.
- Breaker Size: Typically requires a 30-amp breaker.
- Wire Gauge: Usually requires 10-gauge wiring.
- Positioning: Because the compressor is on top of the unit, the electrical junction box is often located lower down than on standard tanks. Your existing wiring might need to be extended.
Can I Install a Hybrid Water Heater Myself?
While DIY projects are great for painting or landscaping, hybrid water heater installation is generally best left to professionals. Here’s why:
- Weight: These units are top-heavy due to the compressor and significantly heavier than standard tanks. Moving one safely often requires two people and specialized equipment.
- Complexity: You’re dealing with high-voltage electricity, pressurized plumbing, and condensate drainage simultaneously. A mistake in any of these areas can lead to code violations, leaks, or fire hazards.
- Warranty Protection: Many manufacturers require proof of professional installation to honor the warranty.
- Code Compliance: Local building codes may require thermal expansion tanks, seismic strapping, or mixing valves. A professional ensures your install passes inspection.

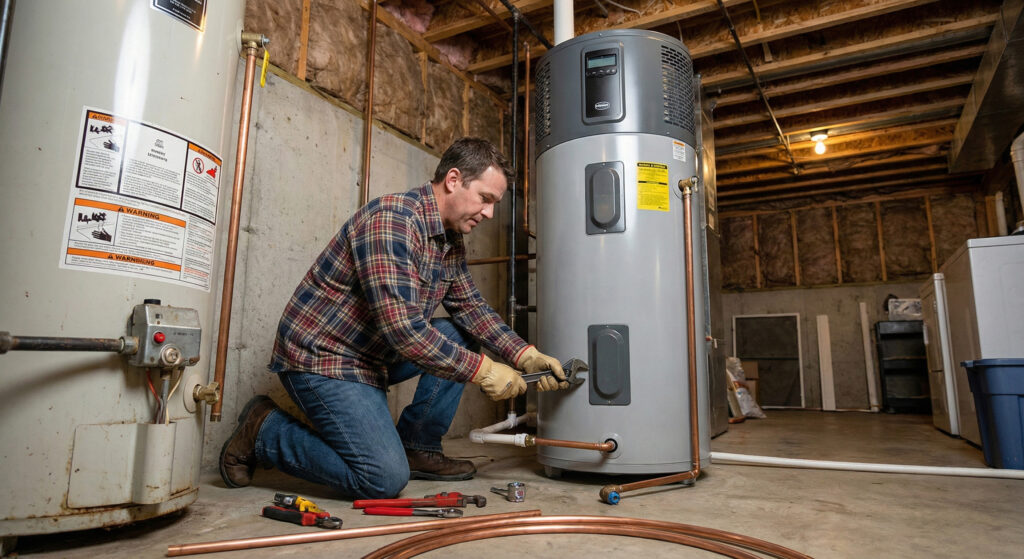

What Does the Installation Process Look Like?
When you hire Any Hour Electric, Plumbing, Heating & Air, we follow a rigorous process to ensure your new system runs perfectly for years to come.
- Assessment: We verify that your chosen location has adequate airflow and structural support.
- Draining and Removal: We safely drain your old unit and remove it, taking care not to damage your floors or walls.
- Positioning: We place the hybrid unit, often utilizing a drain pan to protect against future leaks.
- Plumbing Connections: We connect the cold water inlet and hot water outlet, often using dielectric unions to prevent corrosion. We also install the Temperature and Pressure (T&P) relief valve.
- Condensate Setup: We run the drain line for the moisture collected by the heat pump.
- Electrical Hookup: We ensure the voltage is correct and connections are tight and safe.
- System Testing: We fill the tank, check for leaks, and test the user interface to ensure the heat pump engages correctly.
How Do I Maintain a Hybrid Water Heater?
One of the trade-offs for high efficiency is a slightly higher maintenance requirement. However, it’s simple to manage.
- Clean the Air Filter: Just like your HVAC system, hybrid heaters have an air filter that protects the compressor. Rinse this out every few months to keep airflow strong.
- Flush the Tank: Once a year, drain a few gallons from the bottom of the tank to remove sediment buildup.
- Check the Condensate Line: Ensure the drain line isn’t clogged with algae or debris. Pouring a cup of vinegar through it occasionally can help keep it clear.
Why Choose Any Hour Electric, Plumbing, Heating & Air?
Your water heater is the unsung hero of your home. You don’t realize how much you need it until it’s gone. When you choose Any Hour, you aren’t just getting a new appliance, you’re getting peace of mind.
- Upfront Pricing: We don’t believe in surprise bills. We will give you a clear price before we lift a finger.
- Expert Technicians: Our team is trained specifically on modern hybrid technology. We know how to optimize the settings for your specific climate and home layout.
- Fully Stocked Trucks: We arrive with the parts we need, meaning we can often complete the job in a single visit.
- Respect for Your Home: We use drop cloths and wear shoe covers because we treat your home with the same respect we treat our own.
Ready to Upgrade?
Don’t let an inefficient water heater drain your wallet. Contact Any Hour Electric, Plumbing, Heating & Air today to schedule your consultation. Our experts will help you determine if a hybrid system is right for your home and handle the installation from start to finish.
Hybrid Water Heater Frequently Asked Questions
Q: Will a hybrid water heater run out of hot water faster than a regular one?
A: Generally, no. While the heat pump works slower than heating elements, hybrid units are designed to automatically switch to “high demand” mode (using the electric elements) if you’re using a lot of water at once. You get the efficiency of a heat pump with the backup power of a standard electric tank.
Q: Are hybrid water heaters noisy?
A: They do make some sound, similar to a running refrigerator or a quiet window AC unit (around 50 decibels). Since they are often installed in garages or basements, most homeowners do not find the noise intrusive.
Q: How long does a hybrid water heater last?
A: With proper maintenance, you can expect a hybrid water heater to last 13 to 15 years, which is comparable to or slightly longer than standard electric tanks.
Q: Do I need to upgrade my electrical panel?
A: In most cases, no. If you’re replacing an existing electric water heater, the hybrid unit will likely use the same 240-volt circuit. However, if you’re switching from gas to hybrid, you’ll need a licensed electrician to run a new dedicated circuit.
Q: Is the upfront cost worth it?
A: Yes. While a hybrid unit costs more to buy and install, the energy savings are significant. Many homeowners see a return on investment in just 2 to 3 years, followed by over a decade of pure savings.
