The Icy Trap: Why Airflow Obstruction and Frozen Coils Threaten Your Heat Pump

When winter winds blow or summer heat descends, your heat pump is the unsung hero responsible for your home comfort. Unlike traditional furnaces or central air conditioners, a heat pump performs dual duties, reliably absorbing and releasing heat depending on the season. This makes it a marvel of modern HVAC engineering.

However, heat pumps are incredibly sensitive to one key element: air movement. Restricted airflow, whether caused by simple debris or a more complex problem like a thick layer of ice coating the outdoor coil, can spiral into thousands of dollars in repairs, drastically inflate your energy bill, and ultimately leave your family freezing or sweltering.

Understanding why obstructions and ice are so dangerous is the first step toward safeguarding your system. For homeowners in the Salt Lake City area and beyond, recognizing these warning signs and knowing when to call the experts at Any Hour Electric, Plumbing, Heating & Air is vital to maintaining your system’s efficiency and longevity. We’re here to explain exactly what’s happening beneath the surface when your heat pump struggles to breathe.

How Does the Humble Heat Pump Work to Keep Us Comfortable All Year?

Before diving into the disaster of blocked airflow, let’s review the fundamental physics that make a heat pump function. The key to its success lies in its ability to simply move heat.

In the cooling mode (summer):

• The indoor unit acts as an evaporator, absorbing heat from inside your home into the system’s refrigerant.
• The warm refrigerant is compressed and travels to the outdoor unit, which acts as the condenser.
• A fan blows air across the outdoor coil, rejecting the heat into the outside atmosphere.
• The resulting cool air is circulated back inside.

In the heating mode (winter):

• The process reverses.
• The outdoor coil now acts as the evaporator, absorbing residual heat energy from the cold outside air.
• The refrigerant, now warm, travels inside, where the indoor coil releases the heat into your home.

The key takeaway here is the role of the coils and the air surrounding them. Airflow is the medium for heat transfer. If air can’t move freely across the coil surfaces, the heat exchange process grinds to a halt, forcing the compressor to run harder and longer for diminishing returns.

Why Does Restricted Airflow Cripple a Heat Pump’s Performance?

Airflow obstruction is the heat pump’s primary enemy. This problem can occur in both the indoor and outdoor units and has a swift, negative impact on efficiency and component lifespan. When air movement is reduced, the system’s ability to “breathe” is restricted, leading to several possible failures.

What are the common sources of airflow restriction that aren’t ice?

• Clogged Air Filters: This is the number one cause of indoor airflow reduction. A filter choked with dust, dirt, and pet hair dramatically slows the air pulled across the indoor coil. This restricts heat absorption (cooling mode) or release (heating mode).
  • The effect: The coil temperature drops too low in cooling mode, causing it to freeze (a different type of icing). In heating mode, the home doesn’t get warm enough.
• Dirty Outdoor Coils: Over time, the fins on the exterior unit can become coated in dirt, pollen, leaves, and grass clippings. This gunk acts as insulation, making it difficult for the coil to absorb or reject heat effectively.
• Blocked Vents and Registers: Inside the home, furniture, rugs, or drapes placed over supply or return vents can restrict the movement of conditioned air, disrupting the entire system’s pressure balance and overall efficiency.
• Poor Ductwork Design or Leaks: If the duct system is too small or has severe leaks, the total volume of air reaching the heat pump is insufficient, causing premature wear and strain on the fan motor.

When the heat pump can’t move the required volume of air, it enters a state of perpetual struggle.

The Mechanical Consequences of Restricted Airflow:

1. Reduced Heat Transfer (Inefficiency): The system has to run for hours just to move the temperature a degree or two, causing your energy bills to soar.
2. Compressor Overheating: The restricted flow can alter the refrigerant pressure cycle, causing the compressor, the system’s heart, to run outside its safe parameters, leading to overheating and potential burnout.
3. Fan Motor Strain: The fan motor must work harder to pull air through a restricted pathway (a dirty filter or iced coil), leading to premature failure of the motor itself.
4. Short Cycling: The system may run in Short Cycles, turning on and off frequently, because it senses a problem (like freezing up indoors) or is simply unable to condition the air effectively before reaching a thermal limit.

What Causes Ice to Form on the Outdoor Heat Pump Coils and Why Is It Dangerous?

While some light frost during cold weather is normal and managed by the heat pump’s defrost cycle, a thick layer of ice, the kind that completely encases the outdoor coil and fan grille, is a serious warning sign. This type of severe icing is the single most common cause of major airflow obstruction in the winter.

The presence of thick ice usually signals a fault within the system itself.

Primary Causes of Coil Icing:

• Defrost Cycle Malfunction: In cold temperatures, the heat pump naturally builds up frost. It is equipped with a defrost cycle, a temporary switch to cooling mode, often combined with auxiliary heat and a reversing valve, to melt this frost. Failure of any part of this system (the timer, the sensor, or the reversing valve) means frost accumulates into dangerous ice.
• Low Refrigerant Charge: This is one of the most insidious causes. When the heat pump is low on refrigerant due to a leak, the pressure inside the system drops, causing the outdoor coil to get too cold. This temperature drop can bring the coil below the freezing point of the surrounding air’s moisture, even when ambient temperatures are relatively mild, leading to rapid and extreme ice formation.
• Poor Drainage: When the heat pump enters a successful defrost cycle, the melted water must drain away quickly. If the condensate drain pan is clogged or the unit’s base is sitting in standing water or compacted snow, that water will refreeze onto the lower sections of the coil, initiating a persistent ice buildup.
• Dirty Coils (Pre-existing Obstruction): As mentioned previously, if the coil is already insulated by a thick layer of dirt and debris, it impairs the heat transfer needed during the standard defrost cycle, making the cycle ineffective and promoting more rapid ice formation.

The Danger of Ice: Thermal and Mechanical Stress

Ice is more than just a physical obstruction, it’s a thermal insulator.

1. Complete Thermal Blockage: A layer of ice prevents the coil from absorbing latent heat from the outdoor air. This means the system fails to heat the refrigerant, leading to zero usable heat being delivered inside the home. The system then runs continuously in a vain effort to raise the temperature.
2. Physical Damage to the Fan: As ice builds up, it can contact and damage the fan blades. The system may produce Odd Noises (rattling or scraping) as the fan attempts to turn through the ice, potentially destroying the fan motor and blades.
3. Compressor Flooding (Liquid Refrigerant Return): This is the most catastrophic risk. When the iced outdoor coil cannot fully vaporize the incoming refrigerant, liquid refrigerant can return to the Compressor, a component designed only to compress gas. This process, known as “slugging” or “flooding,” can instantly shatter the internal components of the compressor, resulting in a repair bill that often rivals the cost of a full unit replacement.

What Critical Damage Can Icing Inflict on My Heat Pump’s Core Components?

The immediate consequences of ice, a drop in performance and a spike in utility costs, are only the start. Chronic or severe icing can lead to several component failures that are extremely costly to address. For homeowners, understanding these potential failures underscores the importance of prompt professional repair.

The primary victim of persistent icing is the compressor, followed closely by the fan motor and the refrigerant line set.

• Compressor Catastrophe: The compressor is the most expensive part of your heat pump. When ice prevents proper heat exchange, the system cannot achieve the thermodynamic balance it needs. The worst-case scenario involves liquid slugging, where liquid refrigerant is drawn into the compressor. Since liquid is not compressible, this instantly stresses the internal pistons or scroll mechanisms, leading to mechanical failure. This often requires a full compressor replacement.
• Fan Motor and Blade Failure: The outdoor fan motor is not designed to withstand the resistance of spinning through a thick block of ice. Over time, the repeated effort strains the motor windings and bearings, leading to premature failure. Furthermore, the plastic or aluminum fan blades can become warped, chipped, or completely broken off as they impact the stationary ice mass.
• Refrigerant Line and Coil Damage: The physical expansion of ice can exert tremendous pressure on the delicate aluminum or copper tubing of the coil itself. While rare, repeated severe icing can potentially cause tiny cracks or stress fractures in the coils or welds, leading to a slow but continuous refrigerant leak. As established, a leak then accelerates the freezing problem, creating a vicious cycle of damage.
• Electrical Overload: When the system is struggling to maintain temperature due to low efficiency caused by icing, it draws more amperage and runs for longer periods (Continuously Running). This prolonged, high-stress operation puts an undue burden on the circuit board, relays, and safety controls, potentially leading to electrical failure that further complicates the repair.

What Are the Immediate Symptoms That Require a Homeowner’s Attention?

Fortunately, your heat pump is rarely damaged without providing warning. The signs listed by professionals at Any Hour Services are directly linked to the consequences of restricted airflow and coil icing. Recognizing these tell-tale signs early can save you from a major, emergency repair.

The most common symptoms you should monitor are:

1. Continuously Running System: Does your heat pump seem to run all the time, never quite satisfying the thermostat setting? This is a classic symptom of restricted airflow or icing. The inefficiency caused by the obstruction means the system cannot effectively transfer heat, so it keeps calling for more power, running non-stop and failing to cycle off.
2. Visible Ice or Heavy Frost Buildup: If the outdoor unit has a thick layer of ice completely coating the side fins or the top grille, or if you notice ice forming on the base or around the refrigerant lines entering the unit, it’s a clear indication that the defrost cycle has failed or that the refrigerant charge is critically low.
3. Odd Noises: Any heat pump should run relatively quietly. Sounds like screeching, squealing, or rattling coming from the outdoor unit often indicate a fan blade striking ice or a failing fan motor bearing strained by the obstruction. Loud grinding or metallic clanking can signify catastrophic compressor damage.
4. Short Cycles (Frequent On/Off): While continuous running suggests inefficiency, short cycling is also possible. In some cases, the system’s safety controls sense an issue (like overheating due to restricted airflow on the indoor coil or extreme pressure imbalances) and shut the unit down almost immediately, only to try again minutes later.
5. Unexplained Increases in Energy Bill: If your energy costs have jumped significantly without a corresponding change in weather or thermostat settings, your heat pump is operating inefficiently. This almost always points back to a problem like obstructed airflow that is forcing the unit to consume more power to achieve the same result.
6. Icy or Lukewarm Air from Vents: If the air coming from your indoor vents feels cold when the heat is on, or if the system seems to be blowing slightly cool air in the cooling mode, it means the heat transfer process is failing due to obstruction at the coils.

Are There Immediate, Safe Steps I Can Take to Mitigate Airflow Problems?

As a homeowner, you have an important role to play in preventative maintenance and initial troubleshooting. There are several safe, simple steps you can take to alleviate obvious airflow obstructions before deciding to call a professional technician. Remember to prioritize safety and never open the electrical panels or attempt complex repairs.

Simple DIY Steps for Airflow Management:

• Check and Change Your Air Filter: This is your first and easiest action. Turn the system off, locate your indoor filter, and inspect it. If it’s dark gray or black and visibly clogged, replace it with a clean, correct-sized filter. A clean filter instantly restores indoor airflow.
• Clear the Area Around the Outdoor Unit: Ensure the outdoor heat pump unit has at least two feet of clearance on all sides. Remove any accumulating leaves, grass, dirt, or yard debris. During the winter, check for packed snow or ice, especially at the base and around the sides.

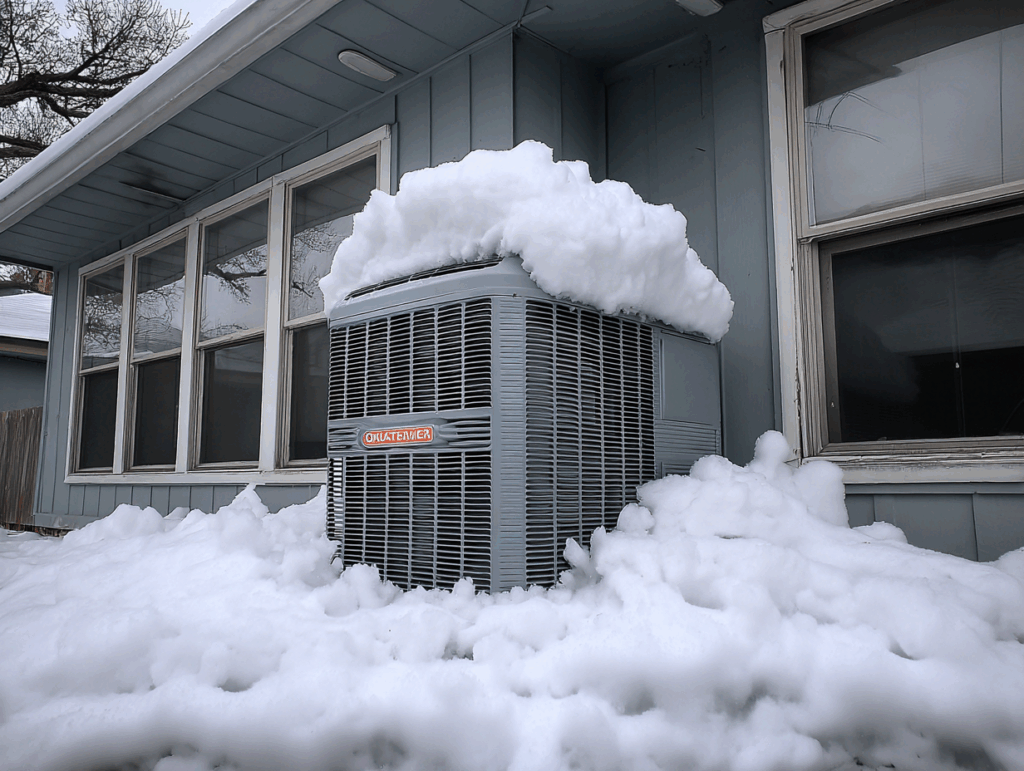

• Address Visible Snow: If heavy snowfall is blocking the unit, gently sweep or brush the snow away from the coil fins and the top of the unit. Never use a sharp tool or shovel near the coil fins.
• Clear Indoor Vents: Walk through your home and ensure that no furniture, drapes, or other items are blocking the supply or return registers.

What to Do If the Coils are Iced:

If you find the outdoor coil is encased in a thick layer of ice, the problem is beyond simple clearance.

1. Turn Off the System: Switch the heat pump off at the thermostat and, ideally, at the disconnect switch located near the outdoor unit. This prevents the compressor from running and potentially causing further damage.
2. Attempt Manual Defrost (Safely): You can use a garden hose (if the weather is above freezing) to gently spray the coils with cool water to melt the ice, starting from the top. In freezing weather, you can use a bucket of warm (not hot or boiling) water to pour over the ice. Do not use a blowtorch, sharp tools, or a hair dryer, as these can damage the fins or melt wiring.
3. Monitor the Thaw: Wait several hours for the unit to fully thaw and drain. Once the ice is gone, turn the unit back on and monitor it closely for 30 minutes. If ice begins to form again rapidly, the underlying problem (low refrigerant or defrost failure) is still present.

When Should I Schedule a Professional Heat Pump Evaluation from Any Hour Services?

While DIY steps can resolve minor issues like a blocked vent or a dirty filter, the most dangerous causes of airflow obstruction, namely, persistent coil icing, require the expertise, knowledge, and specialized tools of a certified technician. Attempting to fix complex issues like refrigerant leaks or electrical defrost problems can be dangerous and void your warranty.

When you observe any of the following issues, it’s time to stop troubleshooting and call the trusted experts at Any Hour Electric, Plumbing, Heating & Air:

• Ice Reforms Quickly: If the coils ice up again within a day of you manually defrosting them, it’s a definitive sign of an internal fault, such as a severe refrigerant leak or a failed defrost component (sensor, board, or reversing valve).
• System Continuously Runs with Zero Heat Output: If the system is still running constantly but the air coming into your home is cool or lukewarm, the heat transfer cycle has completely failed, likely due to a serious obstruction or a defunct compressor.
• You Hear Loud, Odd Noises: Loud grinding, scraping, or high-pitched squealing must be immediately addressed to prevent permanent damage to the compressor or fan motor.
• You Suspect a Refrigerant Leak: Refrigerant handling is strictly regulated and requires specialized training and equipment. Only a professional can safely locate a leak, repair the line, and recharge the system to the precise manufacturer specifications.

How Any Hour Services Diagnoses and Fixes Icing Issues:

When a certified technician from Any Hour arrives, they perform a comprehensive, multi-point evaluation that goes far beyond surface-level cleaning:

• Refrigerant Charge Check: They use specialized gauges to test the system pressures and determine if the refrigerant charge is low, the most common culprit behind icing.
• Leak Detection and Repair: If the charge is low, the technician will utilize electronic leak detection tools to pinpoint the source of the leak, repair the line, and then correctly evacuate and recharge the system.
• Defrost System Inspection: They test all components of the defrost mechanism, including the sensor probe, the electrical resistance heaters (in some models), and the sequencing timer to ensure the system can effectively manage natural frost buildup.
• Component Integrity Check: The technician inspects the Compressor and fan motor for any signs of physical or electrical stress caused by the obstruction, ensuring no long-term damage has occurred.
• Coil Cleaning: Utilizing specialized coil cleaning chemicals, they remove microscopic dirt and grime that often causes invisible airflow restriction, restoring the unit’s factory efficiency.

Conclusion: Protecting Your Investment is a Partnership

Your heat pump is a major home investment designed to provide reliable comfort year-round, but it is highly dependent on clear, unrestricted airflow to function efficiently and safely. Whether the obstruction comes from a dirty filter, debris, or persistent ice on the coils, the consequences are high, leading to soaring energy bills and potential failures in costly components like the compressor.

We’ve established that while homeowners can handle simple tasks like changing filters and clearing surface debris, complex icing issues almost always indicate a critical underlying problem, usually involving the refrigerant charge or the defrost cycle. These are tasks that demand professional, certified attention.

Don’t let ice turn into a repair nightmare. If you notice your heat pump is running continuously, struggling to heat or cool, or producing odd noises, the time to act is now. The expert technicians at Any Hour Electric, Plumbing, Heating & Air are equipped with the knowledge and tools to diagnose the root cause of the obstruction, restore your system’s efficiency, and protect your home investment.

Stop the Ice Before It Destroys Your System!

If you’re experiencing continuous running, short cycling, strange noises, or visible ice buildup on your heat pump coils, don’t wait for a complete system failure.

Contact the trusted experts at Any Hour Electric, Plumbing, Heating & Air today to schedule your comprehensive heat pump repair or preventative maintenance service. Call us now or visit our website to book an appointment and ensure your comfort is restored safely and efficiently!

Airflow & Your Heat Pump: FAQ Section

Is it normal for my heat pump to have any ice on the coils in the winter?

A light, thin layer of white frost on the outdoor coil in cold, damp weather is generally normal, as the heat pump is successfully absorbing thermal energy. The system’s automatic defrost cycle is designed to melt this light frost every 30 to 90 minutes. However, if you see a thick, solid layer of ice (especially an inch or more thick) completely coating the fins and the base of the unit, or if the system runs for hours without going into a defrost cycle, it is not normal. This indicates a serious mechanical failure, typically a problem with the defrost system or a severe refrigerant leak, and requires immediate professional inspection from Any Hour Electric, Plumbing, Heating & Air.

Can a dirty air filter really cause my outdoor coil to freeze up?

Yes, indirectly. A severely dirty air filter restricts indoor airflow, which prevents the proper absorption of heat (in heating mode). When the indoor coil can’t transfer enough heat, it can affect the pressure balance across the entire system. This disruption can cause the outdoor coil to operate at abnormally low temperatures, making it susceptible to rapid and persistent icing. Always check and replace your air filter every one to three months to ensure optimal system pressure and airflow.

Why is “short cycling” a sign of a heat pump problem related to airflow?

Short cycling, when the heat pump turns on and off frequently, is often a result of internal safety controls detecting a malfunction caused by poor airflow. If the indoor coil is obstructed by a dirty filter, the unit can quickly overheat, triggering a high-limit sensor that shuts the unit down to prevent damage. Similarly, if the outdoor unit is severely iced, the refrigerant pressure can become unstable, also triggering safety shutdowns. The unit is trying to protect itself from the stress induced by the airflow problem, but it can’t fix the underlying issue without professional service.

How does a refrigerant leak lead to ice on the coils?

Refrigerant is the medium that carries heat. When the heat pump has a leak, the system’s overall refrigerant pressure drops. According to the laws of thermodynamics, a lower pressure means the refrigerant evaporates (boils) at a much lower temperature inside the outdoor coil. This causes the metal coil surfaces to become excessively cold, leading to rapid, uncontrolled, and persistent ice buildup on the coil fins, even when the air temperature outside isn’t severe.
